Contactless Inline Moisture Measurement Microwave Sensor: WORKsens SR

With WORK Microwave’s WORKsens SR, you can measure the moisture of various materials in a totally contact-free way. The underlying concept of our solution relies on microwave technology to accurately measure the moisture of materials like paper, pulp, cardboard, corrugated cardboard, foils, textiles and other web and board materials.

The WORKsens SR is an ideal solution for fast-running roll-to-roll manufacturing. The sensor system can be integrated seamlessly at measuring bridges of production lines, performing measurements with high accuracy and speed. WORKsens SR is designed for robust and maintenance-free application.

The measuring sensors are accessible via TCP/IP interfaces and can be connected via LAN and USB — meaning it is Industry 4.0 ready! Also the integration into existing systems is easy due to industry standard interfaces like a current data line.

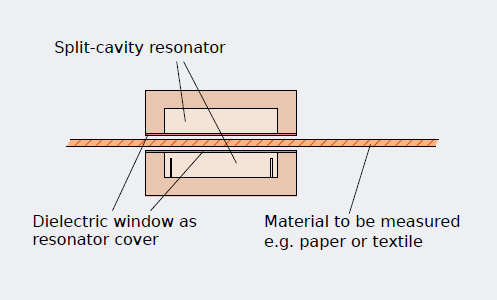

WORKsens SR split-cavity resonator

All Benefits: Contactless Inline Moisture Measurement with WORKsens SR

Industry 4.0 ready

Measurement data flows seamlessly into any production monitoring setup

High measurement accuracy

Reliable sensor performance even for materials with rough or uneven surfaces, and without any impact of electrically non-conductive colors or coatings

High-speed measurement

Superior update rate of 500 measurements per second

Suitable for different material thicknesses

Measurement gap of up to 25 mm in resonance based setup

Bespoke for any application

Customized housing or installation options

Maintenance free

Minimizes line downtimes – a delight for your service budget

WORKsens SR: Seamless Quality Assurance via Microwave Measurement

Demanding measurement applications need a technologically appropriate approach. That’s why WORK Microwave has developed high-tech evaluation electronics for any enhanced measurement method.

Our WORKsens SR offers the following advanced feature set:

  • Direct Digital Synthesis (DDS) concept in combination with the microwave resonance method
  • High accuracy, achieved by a dense frequency resolution
  • High update rate – Over 500 measurements per second possible
  • 16-bit amplitude resolution for a high dynamic range

Paper moisture measurement: Wide range of grammage

Real-Time Contactless Inline Moisture Measurement Data

The WORKsens SR has a high speed signal processing unit that analyzes the data directly. Measurement results are fed to any process monitoring and control system in near real time.

When developing the WORKsens SR, WORK Microwave chose a resonance method that eliminates disturbances from the outside and enables best-in-class accuracy. Our sensor uniquely characterizes the material under test in an enclosed electromagnetic field.

WORKsens SR Principle

Mind the Measurement Gap at Inline Moisture Measurement

The WORKsens SR is optimized to be used on fast-moving production lines. The wide measurement gap ensures an intrusion-free passage of the material.

The resonator’s diameter is scaled to ensure the best and most reliable measurements for your specific application setup. Scaling the diameter affects the operation frequency of the resonator. That frequency is used to adjust the measurement accuracy when characterizing very thin materials. At lower frequencies, thicker materials can also be measured effectively.

Request data sheet of WORKsens SR:

    Name (required)

    Email (required)

    Phone Number

    Company

    Your message

    Quick, Easy Installation and Operation

    WORK Microwave delivers the resonator and the electronic module ready to be integrated into the housing of your application. Our team of experts will provide support during the integration phase, if needed. In addition, we can design customized housing solutions for any application.

    The WORKsens SR system will be installed within your production line at a suitable fixed location, or on a moving scanner bridge.
    The on-board communication interface of the WORKsens SR connects seamlessly to any control system and is industry 4.0 ready. For monitoring and calibration settings, you can directly access the sensor via TCP/IP or USB interface.

    After a simple calibration process, the sensor is ready to perform measurements 24 hours a day, seven days a week.

    If you install the WORKsens SR sensor on a moving measurement bridge, the sensor can compensate height misalignments between the lower and the upper resonator halves which would otherwise lead to measurement errors.

    Why WORKsens SR Contactless Sensor:

    Moisture characterization through all layers of the product

    Coatings and colors have no impact on the measurement

    High accuracy for all materials, even those with rough or uneven surfaces

    Measuring gap up to 25 mm (can be adapted for custom solutions)

    Measurable moisture range from 0 to 70%

    Compensation of height misalignments

    Housing and installation options tailored to your needs

    Maintenance free 24/7 sensing solution
